Specifications:
High quality electrical current usage
100% PVC Insulation pure copper cable
Heavy duty conduit electrification
Tested and trusted
Conformity assessment: NIC/IEC Stranded Solid Conductor
NIS/IEC HO 7 V - U Solid Conductor, 450/750V, Annealed Solid Copper Wire / PVC Insulation Rated 90C, Designation Type 60227 IEC 01 , Bs 6004 & SASO 1320,
Specification:International standard 60227 IEC 01 & BS 6004 and SASO 1320 Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test
Conductor:Soft annealed copper to BS-EN 60228 , class 1 solid conductor
Insulation:Thermoplastic insulation PVC type to IEC 60227 90 °C wire heat resistant type TI - 3 to BS EN 50363-3 also 90 °C PVC type TI - 1 to BS EN 50363-3 are avialable
Indentification on wire: Coleman Cables & Wires 1.5 mm2 CU/PVC (450/750V) 90 DEG C, SASO 1320 TYPE 60227 IEC 01, FR IEC 60332-1

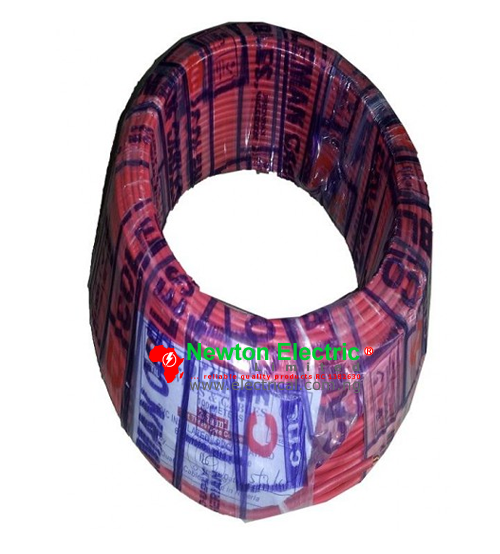

Packing:standard length 100meter coils
